WMT First-Generation Servo Direct-Drive Pump

WMT First-Generation Servo Direct-Drive Pump

The 15KW servo motor drives directly, saving 60% energy per hour compared to traditional booster pumps, significantly reducing operating costs. At the same time, its stable pressure output increases cutting efficiency of the direct-drive pump by 20%.

The direct-drive pump’s drive method eliminates the need for hydraulic and cooling systems, lowering equipment investment costs while also solving issues related to hydraulic leaks and maintenance， This makes it more environmentally friendly.

Inquire

Advantages of the WMT Servo Direct-Drive Pump

1. Crankcase drive system (three-cylinder crankshaft connecting rod structure);

2. Ultra-high pressure booster system (high pressure cylinder, ceramic piston rod, high pressure seal, low pressure seal, high pressure pipeline, check valve, etc.);

3. Double row water filtration system (5Micron,1micron, series);

4. Automatic servo control system, output pressure control mode;

5. Intelligent start and stop function;

6. Automatic stop of overpressure and automatic protection of underpressure.

Specifications

Max Pressure	600Mpa/420mpa
Max Cutting Thickness	300mm
CNC System&Software	WAMIT FLOWEDGE/ECS
Servo Motor	Panasonic /INOVANCE
Electrical Components	Schneider
PLC	SIEMENS
Linear Guide & Ball Screw	HIWIN
Rack & Pinion	YYC
Auto-lubrication System	HERG
Certification	CE&ISO

Advantages of the WMT Servo Direct-Drive Pump

10+ YEARS AS A ORIGINAL FACTORY

Competitive price, higher quality, and reliable technical and after-sales support.

WORLD-LEADING TECHNOLOGY

Self-designed high-pressure servo direct drive pumps, cutting costs by 50%-60%.

EXCEPTIONAL CUSTOMIZATION

One-stop solutions tailored to your needs, with 100% dedication to meeting your requirements.

PRECISE CUTTING FOR HIGH-END MATERIALS

Serving global industries with precision cutting of advanced materials like titanium alloys and aerospace aluminum.

SERVO DIRECTDRIVE PUMP series product introduction

The WMT Servo Direct-Drive Pump is available in two series:
Generation I and Generation II, with a maximum pressure of up to 435 MPa.

Equipment Component Breakdown

Continuous high-pressure stability, 20% increase in cutting speed, and 60%–70% energy savings.

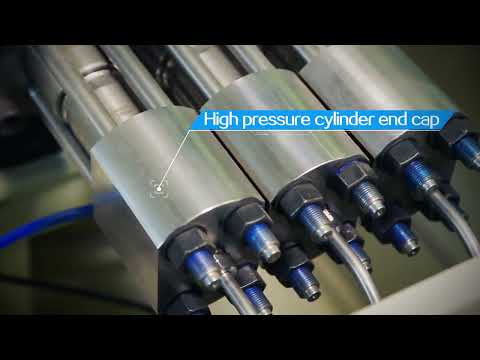

Product Video

Core Components

4 cutting head options available

1. Pure Water Head
· Multiple sapphire nozzles · Narrow cuts, high precision · Multi-head operation
2. 3-Axis Head
· Long-lasting · High precision
3. AV 5-Axis Head
· ±10° tilt (removes edge angles) · Cuts all materials precisely
4. AC 5-Axis Head
· ±60° tilt + 360° spin · Lightweight & precise · Laser height sensor (for stone bevels)
· Probe scans & auto-cuts sinks · 3D metal cutting
WMT Servo Direct-Drive Pump

The 15kW servo motor direct-drive system saves 60% energy per hour compared to traditional intensifier pumps, significantly reducing operating costs. With stable pressure output, cutting efficiency increases by 20%. By eliminating hydraulic and cooling systems, it lowers initial investment while resolving oil leakage and maintenance issues, making it more environmentally friendly.
Control System

Especially present good quality in details of cutting, optimized the trailing made by water stream. Easy draw with point arc polyline,shapes ellipse, polygon,text.
Equipped with WAMIT FLOWEDGE system as standard providing professional and higher control. Support multi-language operation environment, even customized service.
Quality & Service Commitment

Production Standards:
All products are ISO 9001 certified and comply with international safety standards (CE, UL, etc.).
Global Service Network:
With 30+ multilingual technical support centers worldwide, we provide full lifecycle services including installation, operator training, and rapid maintenance.
