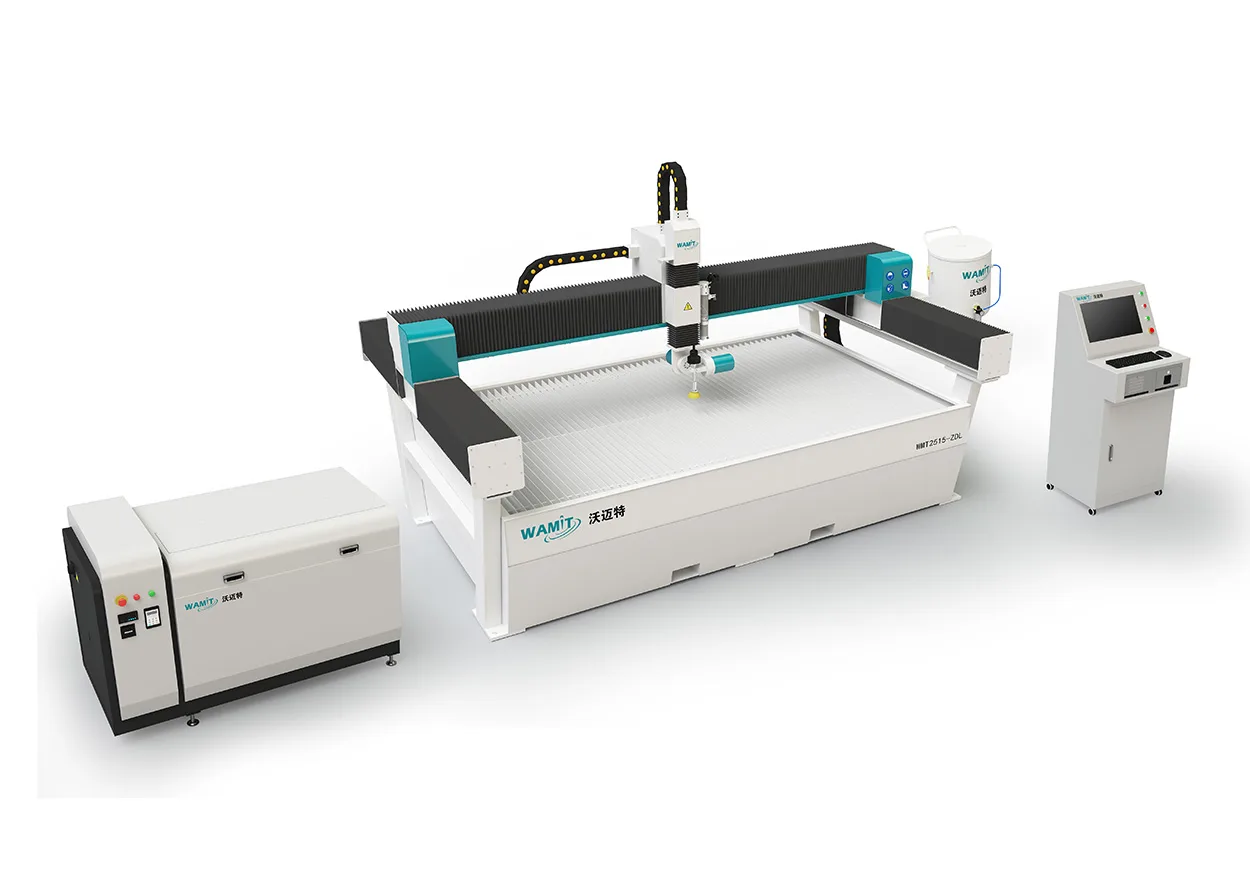

WMT 200Series Waterjet Cutting Machine

The machine adopts an integral gantry structure with a 6mm carbon steel welded cutting platform. The transmission system utilizes HIWIN linear guides (Taiwan) and YYC brand gear racks (Taiwan), delivering high precision and a rapid traverse speed of 50m/min, along with extended service life.

A 360° dust-proof enclosure minimizes environmental damage to transmission components.

Inquire

Product Description

Specifications

Compatibility

Product Advantages

Product Video

Applicable Materials

Core Component Options

WMT 200 Series Description

WMT200 Integrated Waterjet Series Introduction

The WMT200 integrated waterjet cutting system adopts a fully unified structure, combining the high-pressure unit, cutting platform, and control module into a single rigid frame. This design significantly enhances overall stability and transmission accuracy while simplifying installation and maintenance compared to traditional split-type machines.

With a cutting speed of up to 20 meters per minute, the WMT200 delivers high-speed performance without sacrificing precision, making it suitable for metals, stone, glass, composites, and various industrial materials. Powered by a robust high-pressure core, the system ensures continuous and stable pressure output, enabling long-duration operation with consistent cutting quality.

Whether for mass production or precision machining, the WMT200 integrated series offers high efficiency, reliability, and ease of maintenance, making it an ideal solution for a wide range of cutting applications.

Specifications

Max Pressure	600Mpa/420mpa
Max Cutting Thickness	300mm
CNC System&Software	WAMIT FLOWEDGE/ECS
Servo Motor	Panasonic /INOVANCE
Electrical Components	Schneider
PLC	SIEMENS
Linear Guide & Ball Screw	HIWIN
Rack & Pinion	YYC
Auto-lubrication System	HERG
Certification	CE&ISO

WMT 200 Series Advantages

10+ YEARS AS A ORIGINAL FACTORY

Competitive price, higher quality, and reliable technical and after-sales support.

WORLD-LEADING TECHNOLOGY

Self-designed high-pressure servo direct drive pumps, cutting costs by 50%-60%.

EXCEPTIONAL CUSTOMIZATION

One-stop solutions tailored to your needs, with 100% dedication to meeting your requirements.

PRECISE CUTTING FOR HIGH-END MATERIALS

Serving global industries with precision cutting of advanced materials like titanium alloys and aerospace aluminum.

WMT 200 Equipment Model

Customizable in any size, including mini or extra large platforms or other sizes.

WMT 200 Major/Core Components

The WMT200 Series features components from globally and domestically renowned brands,
ensuring premium quality for worry-free cutting performance.

Product Video

Core Components

4 cutting head options available

1. Pure Water Head
· Multiple sapphire nozzles · Narrow cuts, high precision · Multi-head operation
2. 3-Axis Head
· Long-lasting · High precision
3. AV 5-Axis Head
· ±10° tilt (removes edge angles) · Cuts all materials precisely
4. AC 5-Axis Head
· ±60° tilt + 360° spin · Lightweight & precise · Laser height sensor (for stone bevels)
· Probe scans & auto-cuts sinks · 3D metal cutting
WMT Servo Direct-Drive Pump

The 15kW servo motor direct-drive system saves 60% energy per hour compared to traditional intensifier pumps, significantly reducing operating costs. With stable pressure output, cutting efficiency increases by 20%. By eliminating hydraulic and cooling systems, it lowers initial investment while resolving oil leakage and maintenance issues, making it more environmentally friendly.
Control System

Especially present good quality in details of cutting, optimized the trailing made by water stream. Easy draw with point arc polyline,shapes ellipse, polygon,text.
Equipped with WAMIT FLOWEDGE system as standard providing professional and higher control. Support multi-language operation environment, even customized service.
Quality & Service Commitment

Production Standards:
All products are ISO 9001 certified and comply with international safety standards (CE, UL, etc.).
Global Service Network:
With 30+ multilingual technical support centers worldwide, we provide full lifecycle services including installation, operator training, and rapid maintenance.
